The bolts are cast into the concrete base in location tubes or cones and are. Connections designed in accordance with BS 5950. Base plate design example bs 5950
Base Plate Design Example Bs 5950, When it comes to calculating c I get two negative values. The spreadsheets are designed to suit the time. Baseplt9 Steel Column Base Plate Analysis Per Aisc 9th Ed. Where ƒ ck characteristic strength of concrete.
Anchor Bolt Design Spreadsheet Fruitfasr From fruitfasr988.weebly.com
1990 has been replaced by the effective area method in BS 5950-1. Base plate design for BS 59501990 is based on Clause 4132 Empirical Design of Baseplates. Very simple to use and very powerful spreadsheet for steel design. This spreadsheet significantly reduces time required for laborious calculations of.
Cold Formed Hollow Sections BS EN 10219-2.
Read another article:

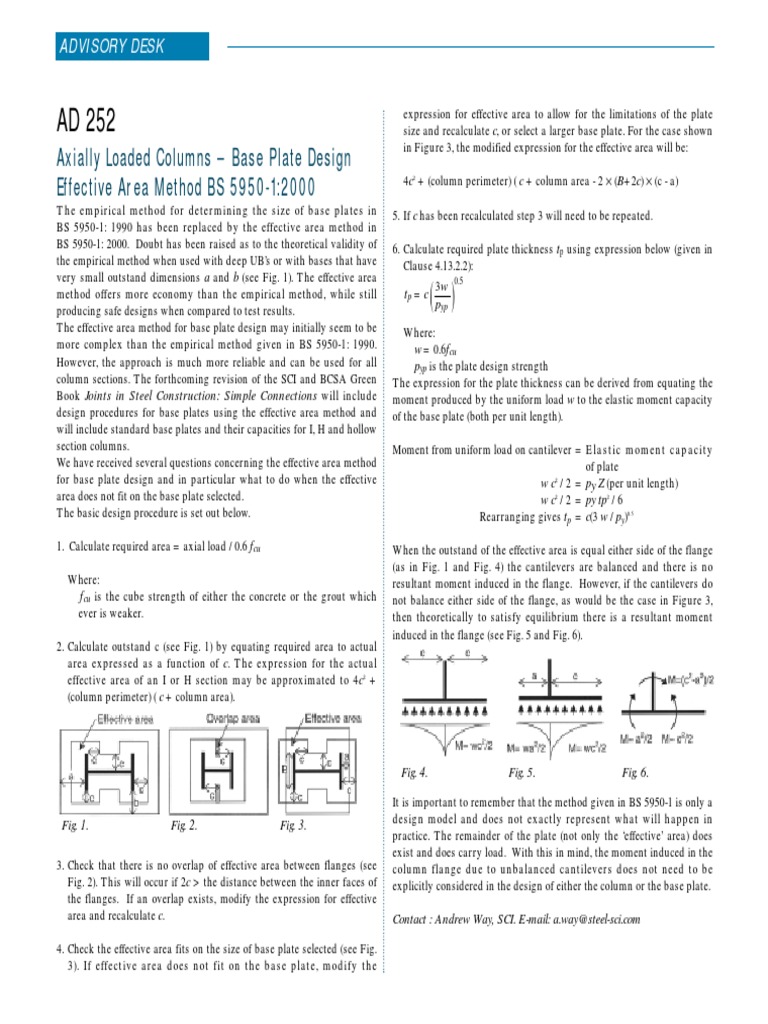

Does this mean the beam itself is capable of distributing the load across the concrete base and thus any size base plate can be used. Doubt has been raised as to the theoretical validity of the empirical method when used with deep UBs or with bases. Base plate design for BS 59502000 is based on Clause 4132 Effective Area Method. The spreadsheets are designed to suit the time. Download Code Base Plate Design for Axial Shear Load and Moments according to BS 5950.
Source: fruitfasr988.weebly.com
Spreadsheet templates can also be used for instant budgets such as an instant party budget and etc. Base plate design for BS 59501990 is based on Clause 4132 Empirical Design of Baseplates. Where ƒ ck characteristic strength of concrete. It includes lateral torsional buckling check therefore is a comprehensive and an important tool for structural engineers. Anchor Bolt Design Spreadsheet Fruitfasr.
Source: structville.com
Design of Base Plate for BS5950 - Free download as PDF File pdf Text File txt or read online for free. The plan dimensions of the slab base plate may now be selected to provide the above area and also so that the projections a and b beyond the rectangle circumscribing the column area nearly equal Fig. Doubt has been raised as to the theoretical validity of the empirical method when used with deep UBs or with bases that have very small outstand dimensions a and b. Design of Base Plate As Per BS 5950 Download. Design Of Moment Resisting Column Base Plates Structville.
Source: structville.com
User input was limited to minimum and as much as possible is automated. 36 Base plates and foundation 16. Design of Base Plate As Per BS 5950 Download. It includes lateral torsional buckling check therefore is a comprehensive and an important tool for structural engineers. Design Of Column Base Plate Connections Ec3 Structville.
Source: yourspreadsheets.co.uk
Very simple to use and very powerful spreadsheet for steel design. Steel Column Design Spreadsheet to BS 5950. The empirical method for determining the size of base plates in BS 5950-1. Design of a Base Plate - BS 5950-12000. Holding Down Bolt Design Spreadsheet To Bs 5950 Bs 8110 And Concrete Society Advice No 5.
Source: structville.com
The adoption of the published design rules in BS EN 1993-1-8 and its UK National Annex. These templates are designed such that it fits the particular budget whether it is a wedding budget or the annual get together budget. Where S is the plastic modulus of the section Which implies that S M c P y 363625 10 6275 1320963636 mm 3 1320963 cm 3. Connection of base plate to column It is assumed that the axial force is transferred by direct bearing which is achieved by normal fabrication processes. Design Of Moment Resisting Column Base Plates Structville.
Source: structville.com
Very simple to use and very powerful spreadsheet for steel design. Therefore provide a base plate of thickness t p 20 mm in S275 material since t p is less than 40mm. Where ƒ ck characteristic strength of concrete. Very simple to use and very powerful spreadsheet for steel design. Design Of Moment Resisting Column Base Plates Structville.
Source: yourspreadsheets.co.uk
Design of Base Plate for BS5950 - Free download as PDF File pdf Text File txt or read online for free. Does this mean the beam itself is capable of distributing the load across the concrete base and thus any size base plate can be used. Where ƒ ck characteristic strength of concrete. Steel Reinforcing Plate for Masonry 10Structural Details File Repository annex practical design of steel structures 6 3 6 design of thickness and size of base plate ring to table 9 of bs 5950 2000 1 design strength p y related ebooks a beginners guide to simple plate girder design to ec3 part 1 5 2 continental steel public seminar 6 august 2014 ntu darko beg et al design of plated. Holding Down Bolt Design Spreadsheet To Bs 5950 Bs 8110 And Concrete Society Advice No 5.
Source: yourspreadsheets.co.uk
Download Code Base Plate Design for Axial Shear Load and Moments according to BS 5950. Design to BS 5950. Base plate design for BS 59501990 is based on Clause 4132 Empirical Design of Baseplates. Holding Down Bolt Design Spreadsheet To Bs 5950 Bs 8110 And. Holding Down Bolt Design Spreadsheet To Bs 5950 Bs 8110 And Concrete Society Advice No 5.
Source: youtube.com
Where S is the plastic modulus of the section Which implies that S M c P y 363625 10 6275 1320963636 mm 3 1320963 cm 3. The empirical method for determining the size of base plates in BS 5950-1. Due to its form easy input and clear output it reduces time required for designing steel members. For such col-umns the simple column-base-plate connection detail shown in Figure. Steel Design Base Plates Fixed Base Plate Worked Example Sd424 Youtube.
Source: pdfcoffee.com
For such col-umns the simple column-base-plate connection detail shown in Figure. It includes lateral torsional buckling check therefore is a comprehensive and an important tool for structural engineers. 1990 has been replaced by the effective area method in BS 5950-1. Design of Base Plate As Per BS 5950 Download. Anchor Bolt And Circular Base Plate Design As Per Bs 5950 Pdfcoffee Com.
Source: issuu.com
The beam is considered as simply supported and the design data for calculating the bending. 1980 including Amd 1 and 2. Base plate design for BS 59501990 is based on Clause 4132 Empirical Design of Baseplates. Base plate design for BS 59502000 is based on Clause 4132 Effective Area Method. Column Base Plate Example By Ex Cop Issuu.
Source: fr.scribd.com
UB UC joists bearing piles and channels to BS4. Circular base plates are not considered. This spreadsheet significantly reduces time required for laborious calculations of. APPENDIX E WORKED EXAMPLE BASE PLATE CONNECTION 141. Bolts Base Plate Design To Eurocode Pdf.
Source: theengineeringcommunity.org
Where ƒ ck characteristic strength of concrete. Does this mean the beam itself is capable of distributing the load across the concrete base and thus any size base plate can be used. Column Base Plate Check-According to EC3References to BS 5950Check the total resistance of the base plate following indicated below stepsaCalculate the a. Design bearing strength of concrete 045 ƒ ck. Gusset Plate Connection For Truss Spreadsheet.
Source: pinterest.com
Baseplt9 Steel Column Base Plate Analysis Per Aisc 9th Ed. These templates are designed such that it fits the particular budget whether it is a wedding budget or the annual get together budget. Holding Down Bolt Design Spreadsheet To Bs 5950 Bs 8110 And. Preliminary design methods are summarised in an Appendix. Steel Corbel Design Spreadsheet In 2021 Spreadsheet Corbels Design.
Source: de.scribd.com
BS 5950 DESIGN OF BASE PLATE. Circular base plates are not considered. Essential spreadsheet for steel design. Where S is the plastic modulus of the section Which implies that S M c P y 363625 10 6275 1320963636 mm 3 1320963 cm 3. Base Plate Design Pdf.
